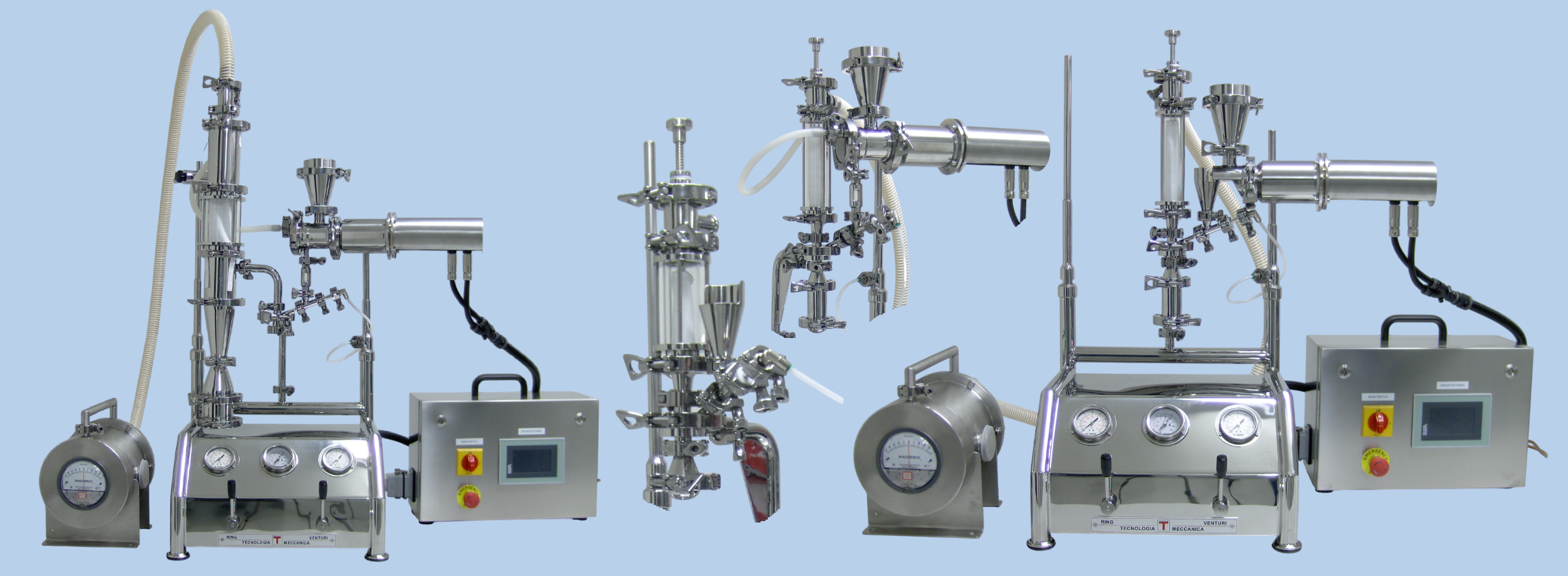

Modular Unit of our own design, the J-20/J-25/J-30 JETMILL is one part of
a very complete system based on 3 different milling chambers and with
about 50 different configurations.
These configurations cover the whole spectrum of the micronization technology
issues. The J-20/J-25/J-30 JETMILL is the ideal fluid Jet Mill dimension
for R&D applications for batches starting from 100 milligrams (with J-10 kit) to 400 grams.
Three machines in one (early r&d, development phases, pilot), the Milligram kit and
the Magnum kit give equipment extension respectively to 50 milligrams batch and
to 400 grams depending by product apparent specific weight.
Verification of possibility to micronize the molecule at an early stage,
batch size 50mg-200mg with the same PSD performance of bigger units and tested
product yield higher than 75%.
Pilot capability in the magnum configuration, 400g marketing size batch
and, last but not least, it is over the top in psd performance worldwide.
TECHNICAL FEATURES
Very small batches: LACTOSE
 Quantity of product fed: 0.3 grams
Micronized product: 0.22 grams
Yield 73.3%
Medium batches: PEPTIDE
Quantity of product fed: 1 gram
Micronized product: 0.88 grams
Yield 88%
Bigger batches: POLIPEPTIDE
Quantity of product fed: 50 grams
Micronized product: 49.3 grams
Yield 98.6%
Please get in contact with us by filling in our "contact us"
form, you will
receive an engineered solution to your micronization process
application.
